Full HD Advanced Optical Inspection System

Home / Configured Digital Microscopes / Full HD Advanced Optical Inspection System with INSPECTIS© Pro Software

F35s Digital Microscope System Package

Optical Inspection System with Full HD technolgy

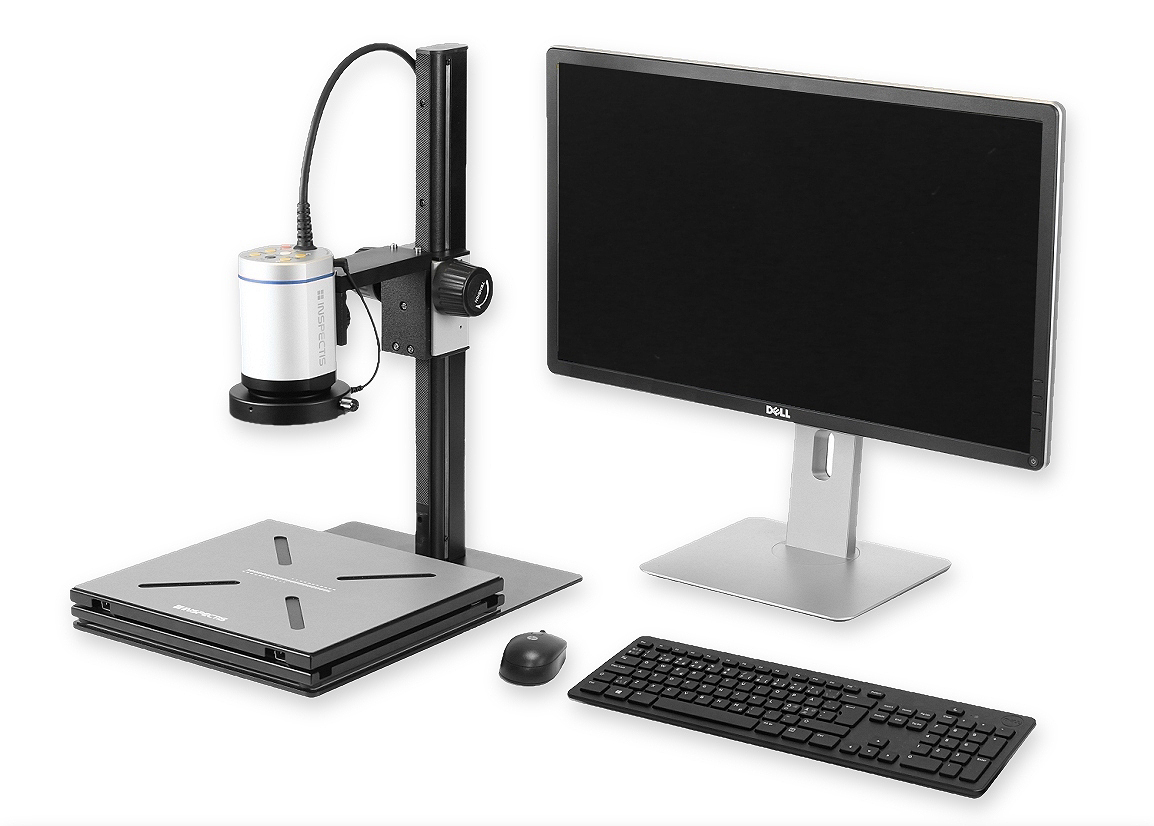

Complete package including best-on-the-market FHD 2.3 megapixel Digital Microscope with 35:1 Optical Zoom Range, swift Auto Focus, extra +10 diopter Macro Lens, Fine Focusing Track Stand, LED Ring light, large working area XY-Floating Board and poweful INSPECTIS© Pro Utility and Metrology Software.

Designed for Ergonomic Use

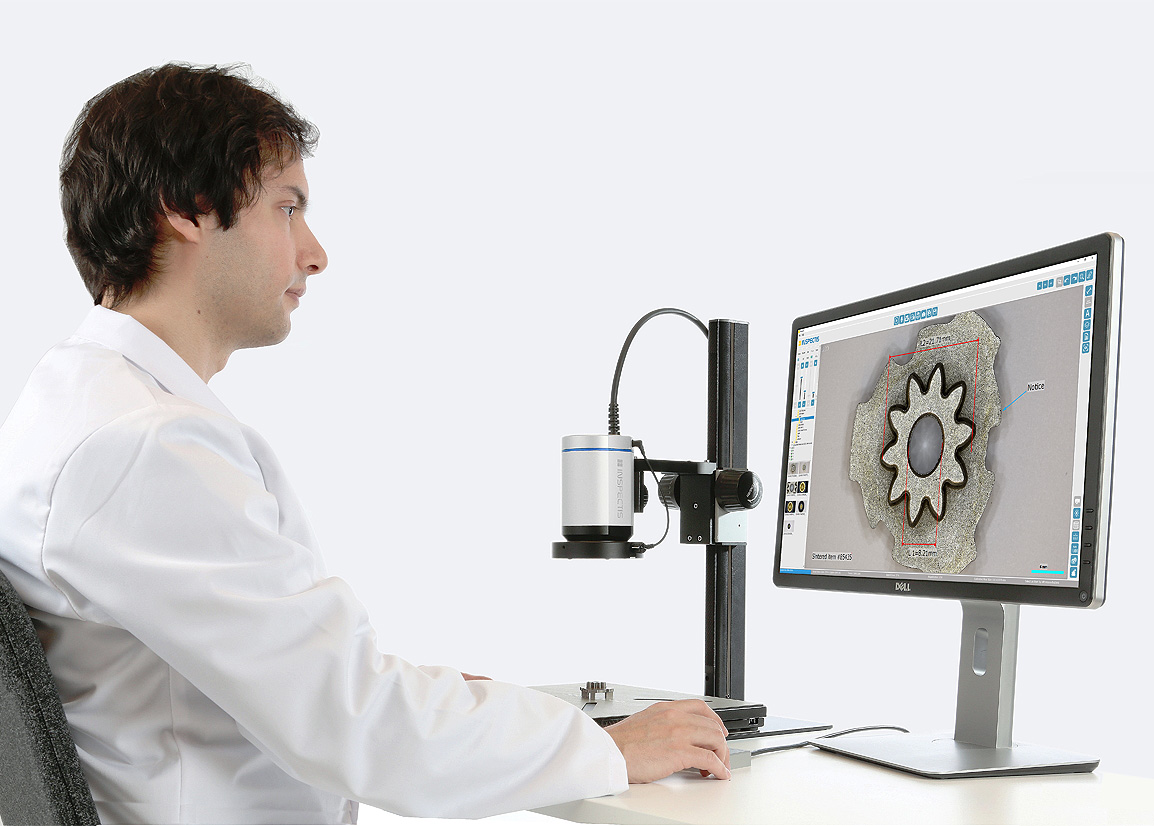

Inspectis digital microscopes provide relief to eyes, neck and shoulders through the unique ergonomic design and large free working distance. By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently.

High Performance at Low Cost

Inspectis F35s is a high quality and robust digital microscope with excellent image quality, high contrast and wide zoom range. With its competitive pricing and long-lasting design features, your total investment cost for optical inspection is kept to a minimum.

Ergonomic

Cost Effective

Reliable

First class Optics

The system’s standard optics with motorised zoom, auto-focus and 1.7 – 61.4x magnification range (24” monitor) surpasses common inspection microscopes.

With included +10 diopter attached, magnification can be zoomed up to 197x while you still can take advantage of 298mm large filed of view at 1x zoom factor.

Powered by INSPECTIS©

The system is powered by INSPECTIS© Pro software. Powerful yet easy-to-use live image view, capture, analysis, metrology and reporting software.

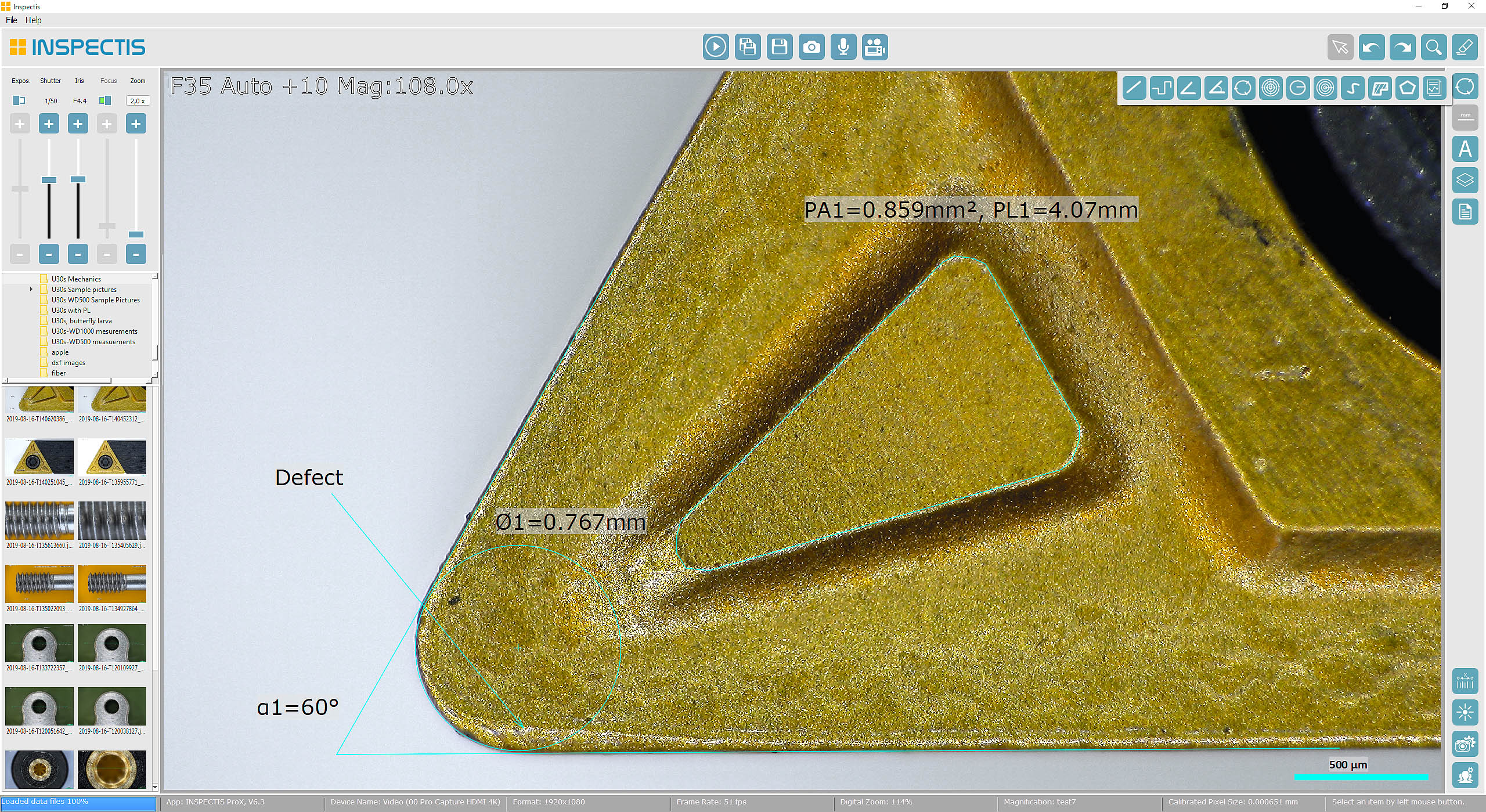

INSPECTIS© Pro is pre-calibrated across entire zoom range of the F35s microscope and provides tools measurements, image overlays, comparison, video & audio recording, drawings, annotations, and reporting. INSPECTIS© provides direct access to camera and lens attributes like optical zoom, aperture size, shutter speed, contrast, focus and colour balance.

Precise Camera and Lens Control

INSPECTIS© provides direct access to camera and lens attributes like optical zoom, aperture size, shutter speed, contrast, focus and colour balance.

1 to 16 camera and lens configurations can be saved in memory for quick recall through P1 to P16 icons on software

Developed for Ease-of-Use

Inspectis F35s digital microscope powered by INSPECTIS© offers true ease of use with minimal interaction needed with controls and settings.

INSPECTIS© Pro is a powerful yet easy-to-use software for live image view, capture, analysis, and reporting . INSPECTIS© Pro provides tools for zoom tracking, non-contact geometrical measurements, image overlays, comparison, video recording, drawings, annotations and reporting.

All camera and lens parameters such as zoom, aperture size, brightness, focus and colour levels can be controlled by the user through graphical interface of INSPECTIS© software.

Fully configurable optical system

Inspectis 4K and FHD Advanced systems can be fully adapted to your application and has a wide range of accessories. Options included:

Transmitted brightfield white illumination
Incident UV ring-light illumination
+3, +5, +28 or +56 diopter extra lenses
ESD protected housing
Through focus laser pointer
Motorised XY-stage with joystick control

Included items: HD-013-KIT-ADV or HD-113-KIT-ADV

Inspectis F35s, FHD 60pfs Modular Digital Microscope, 35x zoom (HD-113-KIT-ADV)
Inspectis F30s, FHD 60pfs Modular Digital Microscope, 30x zoom (HD-013-KIT-ADV)
Macro lens +10 diopter, 67mm (replaceable with other lenses on request)
Track stand, Large Base with focusing WD 35-410mm, ESD-Protected base
XY Floating Board with magnetic pegs (4x kit)
RingLight White LED with detachable diffuser
Full HD HDMI USB3.0 Capture with INSPECTIS© Pro software
Annual Service and Support for INSPECTIS© Pro (one year)

Downloads

Download product brochure Brochure Inspectis systems

Brochure_Inspectis-F35

Download Product Catalogue

Send download link to:

Product video

Specifications

System

Video output	Full HD 1080p/60 frames per second
Image sensor	1920(H) x 1080(V) 16:9 format, 1.62 μm x 1.62 μm pixel size
I/O Ports	HDMI video output, 5P MiniDin power input, 8P MiniDin for communication
Camera and lens control via top buttons	Zoom, Iris, Auto Focus on/off, White Balance
Camera and lens control via software	Zoom, Iris, Shutter-speed, Manual/Auto Brightness, Manual/Auto Focus, Contrast, White Balance, Clarity, NIR-mode Quality Mode, Display Text, Crosshairs overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch, Video Output Frame Rate
Optics	High resolution motorised zoom lens with autofocus, iris control and pre-calibrated optics with automatic zoom tracking.
Illumination	White LED Ring Light with electronic dimmer
XY-stage	Floating board X ± 160mm Y ± 145mm travel range, Antistatic
Stand	Track stand with rack & pinion. 35 – 410mm focusing range (WD)
Storage Environment	-20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment	-5 ° – +45°C, 20 – 95% RH, non-condensing
Size, Weight	510 x 400 x 295 mm, 9.8 kg.

Optional accessories

Macro Lens +5 Diopter, 67mm

Item no. HD-039

+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

Explore other Lenses

Polarisation filter set for RingLight, 67mm

Item no. HD-024-P-U

Polarising filter set consists of a polariser which is attached on front of the LED RingLight and an analyser which is screwed on the camera lens.

For polarised light microscopy and for eliminating glare from highly reflective objects like solder joints.

Explore Illuminations and Polarisers

Item no. -PX

Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides following extra tools:

• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom
