HDMI Image Capture and Video Recorder Devices

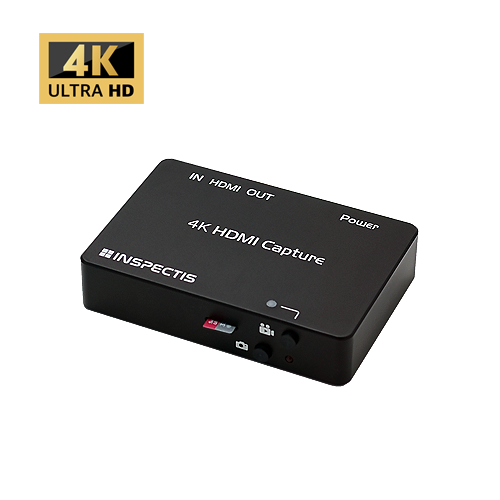

Inspectis 4K External HDMI Image Capture and Video Recorder for U-microscopes

Item no. HD-140-U

High-quality, plug-&-play 4K HDMI Capture and Video Recorder device with 4K video loop-through. Compatible with 2160p output signal of Inspectis U30, U30s, U10 and U10s Digital Microscopes. Captures still pictures at UHD resolution and digital video at FHD format on a Micro SD-card without need of a host computer.

Live loop through video output at 4K, 2160p format. Supplies date and time stamp on still picture and recorded video. Delivers with power supply, HDMI A-type male cable and Micro SDHC-card.

Assembled in industrial grade aluminium housing with stainless-steel bottom plate.

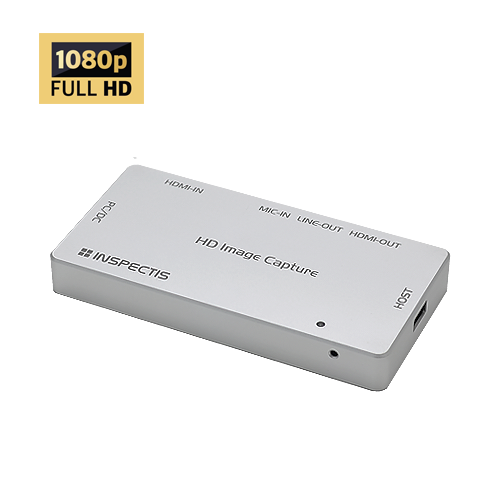

Inspectis Full HD External Image Capture and Video Recorder with aluminium housing

Item no. HD-140

Plug-&-play Full HD Image Capture and Video Recorder device. Compatible with Full HD (1080p) and 4K (2160p) output signals of Inspectis Digital Microscopes. Captures live video and still pictures up to 1080P resolution (1920×1080 pixels) via USB flash drive interface without need of host computer.

Live Video Loop at 1080p 60 fps, Playback function, Live Streaming to PC, Microphone Input for Audio Recording and Speaker Output are also available. All functions are controlled via an easy-to use Remote Controller.

Assembled in industrial grade aluminium housing with stainless-steel bottom plate.

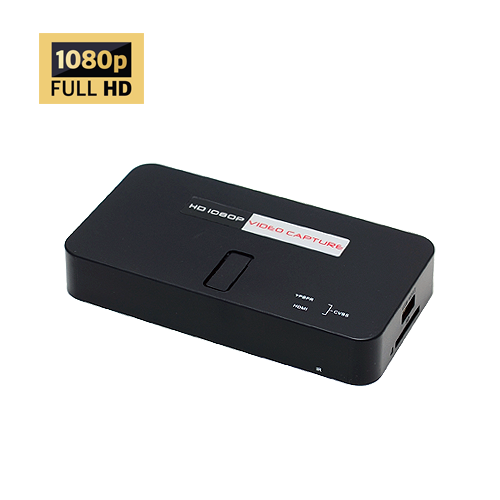

Full HD External Image Capture and Video Recorder for F microscopes

Item no. HD-140-F

Plug-&-play Full HD Image Capture and Video Recorder device with remote control. Compatible with Full HD (1080p) output signals of Inspectis F30 and F30s Digital Microscopes. Captures live video and still pictures up to 1080P resolution (1920×1080 pixels) on SD-card or USB flash memory without need of host computer.

Live Video Loop at 1080p 60 fps. Microphone Input for Audio Recording and Speaker Output are also available. Still image and video capture via an easy-to use Remote Controller.

4K 60fps HDMI to USB3.2 Converter

Item no. HD-120-P60

High quality Plug-&-play 4K 60fps HDMI Capture device.

Connect HDMI output of your Inspectis 4K 60fps Digital Microscopes to this device and plug it to USB3.2 Gen2x2 port of your computer to view and capture live image of your Digital Microscope in 4k 60fps format.

No need to install drivers. Automatically determines the input video format and converts it to the specified output size and frame rate. Supports loop-through resolution up to 4096×2160 pixels for connecting the video to an external monitor.

A FPGA is used for video processing and data transmission, reducing CPU usage of host computer. All video processing is done by onboard hardware. Verified and approved for use together with Inspectis Digital Microscopes and INSPECTIS© Basics, Pro, ProX and OAI software.

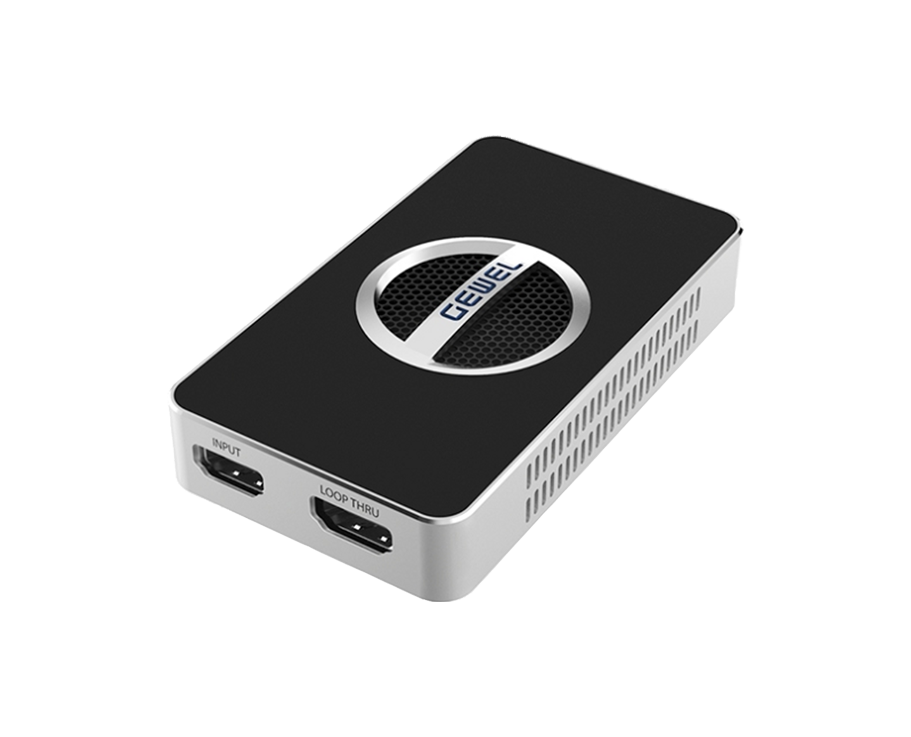

4K 30fps HDMI to USB3.0 Converter

Item no. HD-120-P

High quality Plug-&-play 4K 30fps HDMI Video Capture device.

Connect HDMI output of your Inspectis 4K 2190p Digital Microscopes to this device and plug it to USB3.0 or USB3.1 port of your computer to view and capture live image of your Digital Microscope in ULTRA HD format.

No need to install drivers. Automatically determines the input video format and converts it to the specified output size and frame rate. Supports loop-through resolution up to 4096×2160 30 fps for connecting the video to
an external monoitor. Supports capture of 4K 60fps downscaled to 30fps without loopthrough.

A FPGA is used for video processing and data transmission, reducing CPU usage of host computer. All video Processing is done by onboard hardware. Approved for use together with Inspectis Digital Microscopes and INSPECTIS© Basics, Pro, ProX and OAI software.

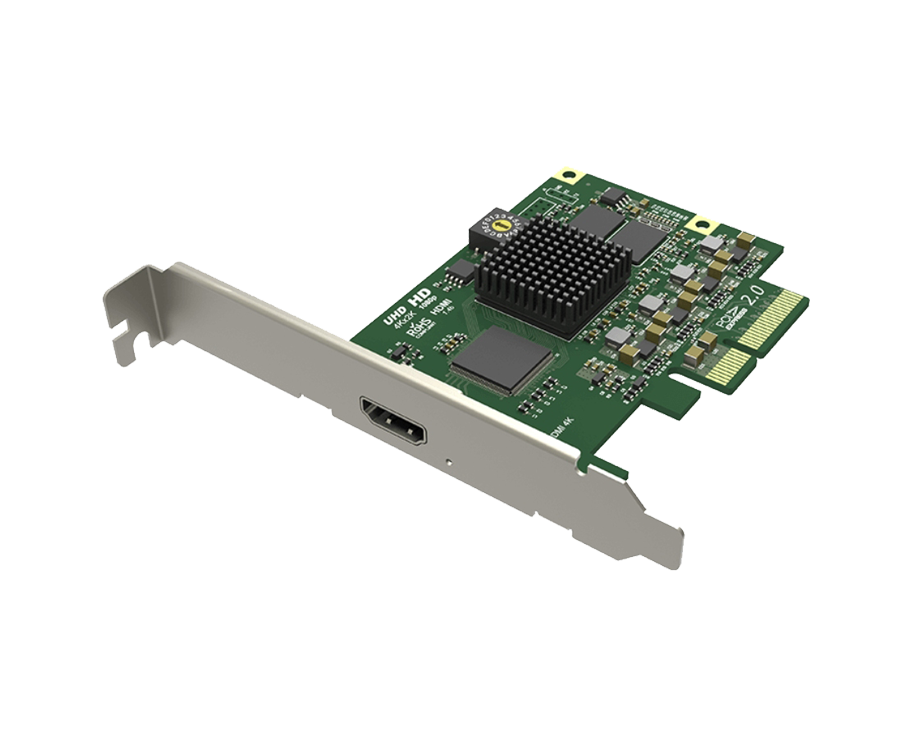

4K 30fps HDMI to PCIe Converter

Item no. HD-130

One channel 4K PCI express 2.0×4 video capture card.

Connect HDMI output of your Inspectis 4K 60 fps Digital Microscopes to this card and capture live image of your Digital Microscope in Ultra HD 60fps format. HD-130 automatically determines the input video format
and automatically converts it to the specified output size and frame rate.

A FPGA is used for video processing and data transmission, reducing CPU usage of host computer. All Video Processing is done by onboard hardware so requires zero CPU usage.

Cards maintain stable performance after long periods of use. Verfied and approved for use together with Inspectis Digital Microscopes and INSPECTIS© Basics, Pro, ProX and OAI software.

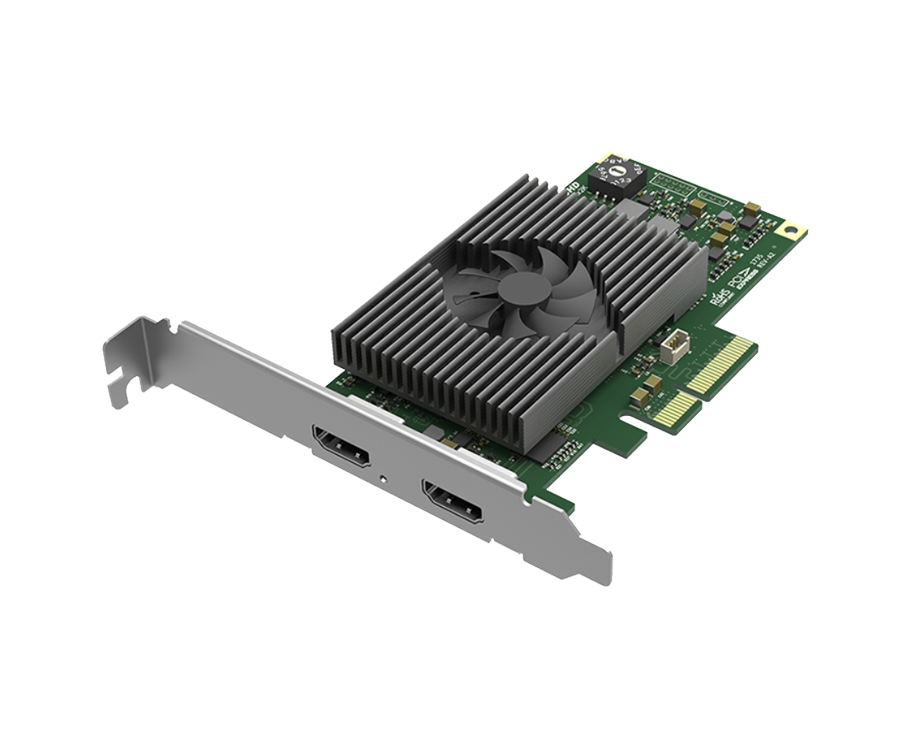

4K 60fps HDMI to PCIe Converter with loop-through

Item no. HD-130-LT

One channel 4K 60fps PCI express 2.0×4 video capture card with loop-through output for external display.

Connect HDMI output of your Inspectis 4K 60fps Digital Microscopes to this card and capture live image of your Digital Microscope in Ultra HD 60fps format simultaneously in INSPECTIS© software as well as on an extra monitor. HD-130-LT automatically determines the input video format and automatically converts it to the specified output size and frame rate.

A FPGA is used for video processing and data transmission, reducing CPU usage of host computer.

All Video Processing is done by onboard hardware so requires zero CPU usage.
Cards maintain stable performance after long periods of use. Verfied and approved for use together with Inspectis Digital Microscopes and INSPECTIS© Basics, Pro, ProX and OAI software.
