4K 30:1 Optical Zoom Modular Digital Microscope

Home / Modular Digital Microscopes / U50s Modular Digital Microscope with 4K 60fps Performance

4K Performance with 60fps, 50x Zoom and On-board controls

Fast and Accurate

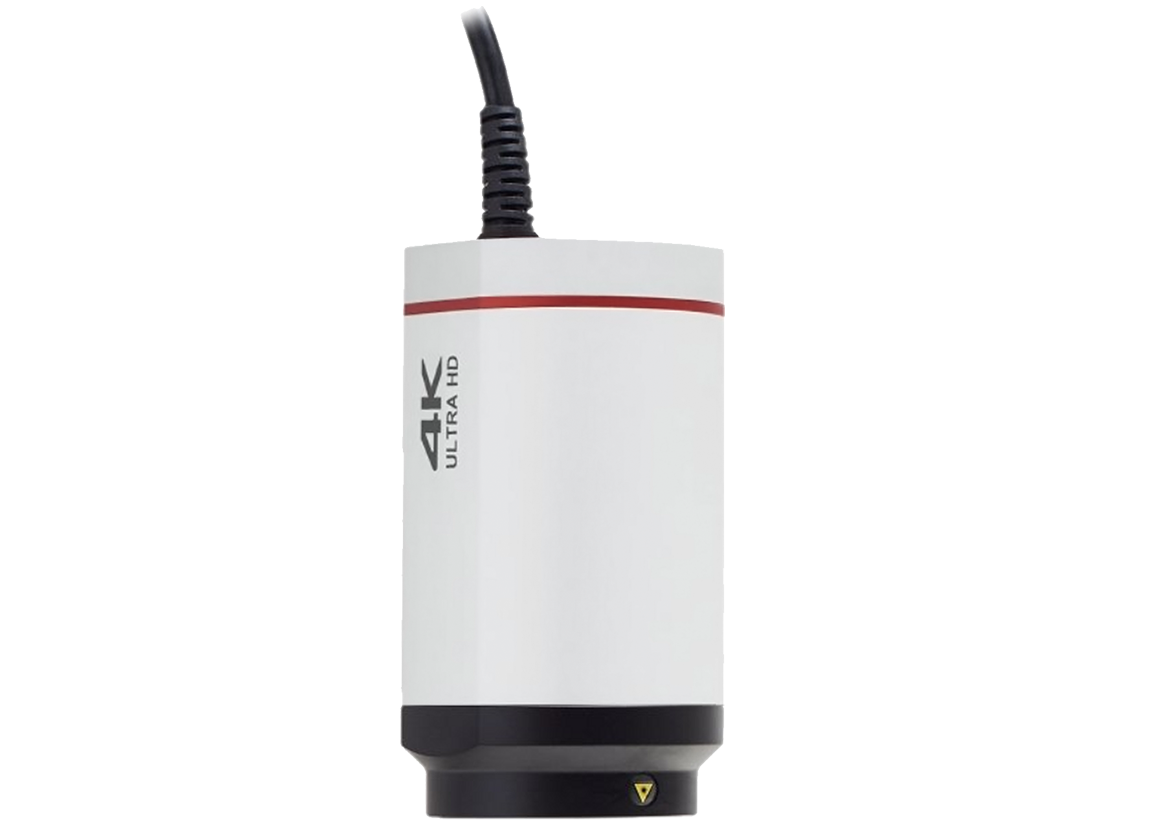

State of the art Ultra High Definition 8.3 megapixel modular Digital Microscope with 60 frames per second video, 50:1 motorised zoom, swift centre-spot auto focus, and easy-to-access on-board lens & camera controls. Standard UNC 1/4-20″ mount for assembly on most standard stands.

More Natural Images

The U50s creates vivid 4K video at 60 fps and low latency. Video’s high refresh rate maintains image coherence and stability, reduces motion blur, and provides smooth and dynamic images of especially fast-moving objects.

Breakthrough Technology

Industry-leading 4K60 signal processing with exceptional flicker and flare reduction for best image quality. Small form factor design with robust all-aluminimum housing. Ideal for system integration.

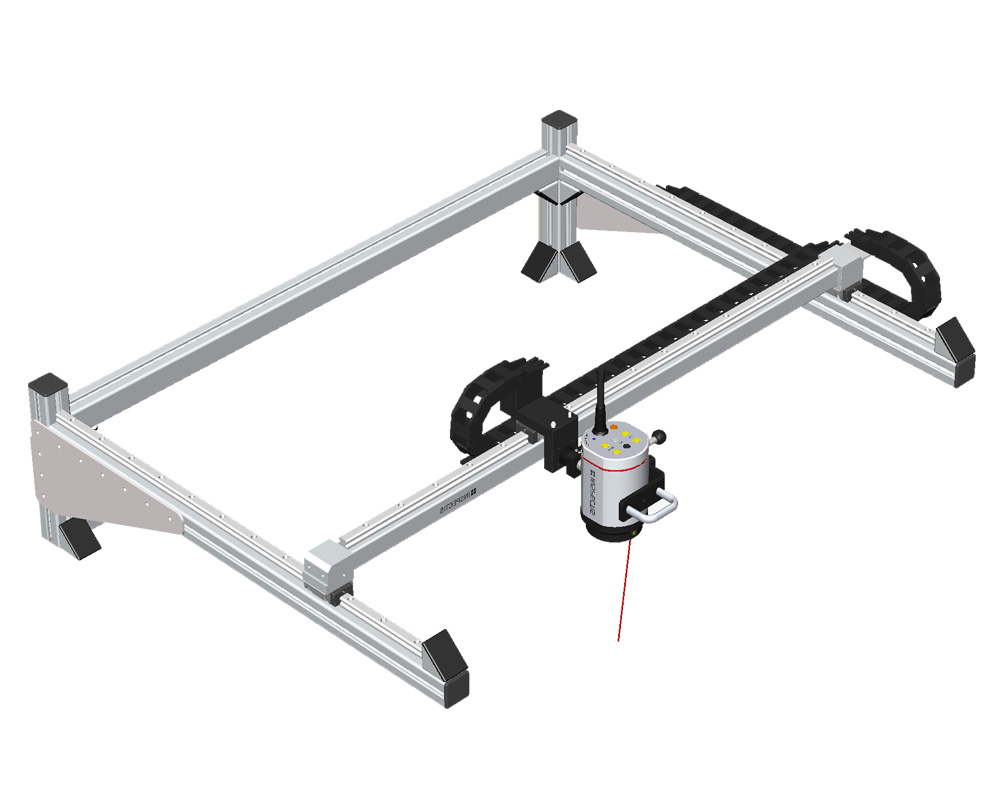

Modular

Easy to Use

Reliable

Superior Optics with High Frame Rate

The U50s creates vivid 4K images of your inspection object at 60 fps and near zero latency.

First class F1.6 – 4.8 optics. Advanced high resolution motorised zoom lens with 7-blade aperture and fast auto-focus. 225 mm free working distance with standard x50 zoom optics.

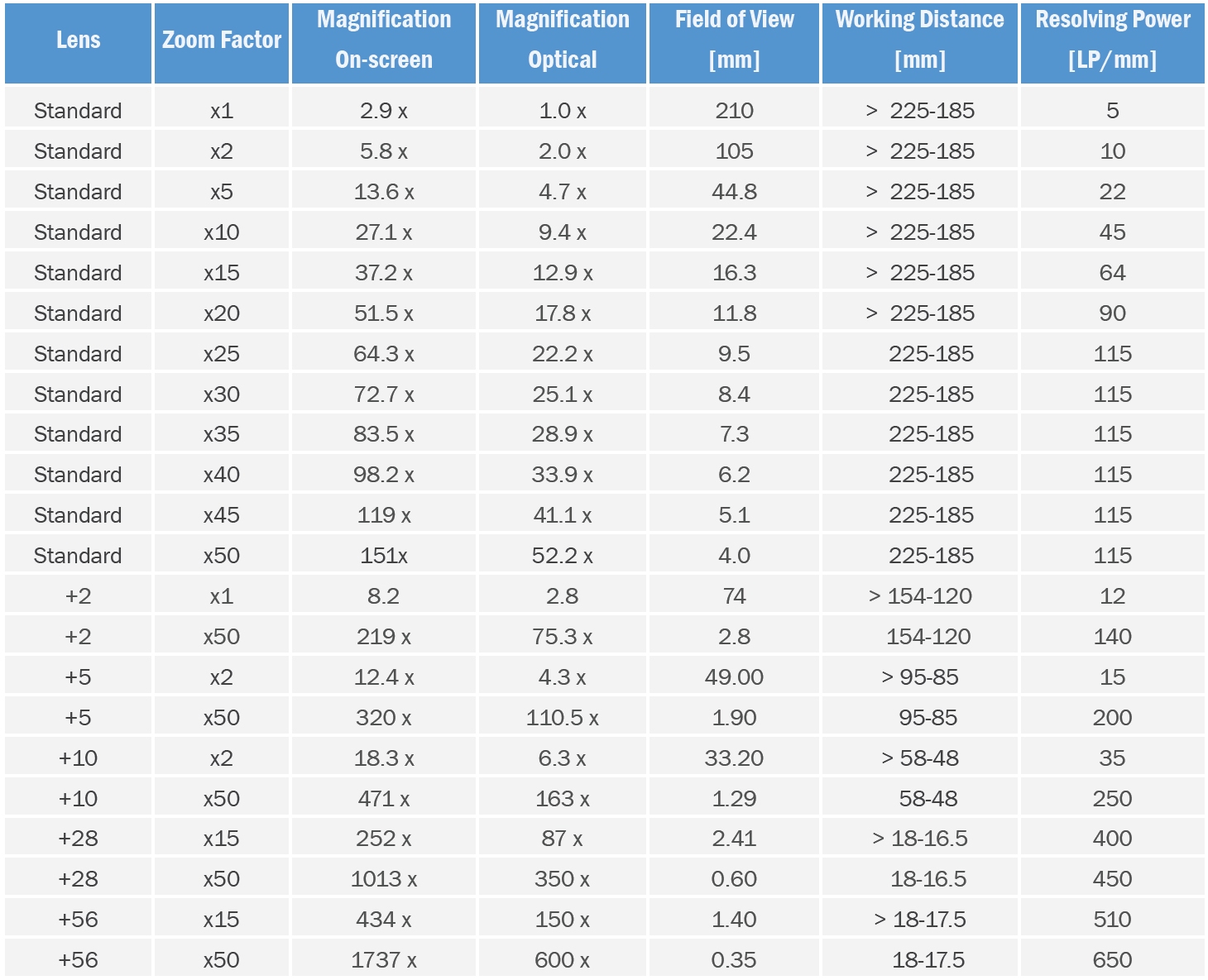

245mm to 4.9mm field of view equal to 2.5x to 124x on-screen magnification. Configurable to 1730x on-screen magnification equal to 0.35mm field of view with +56 dioptre lens.

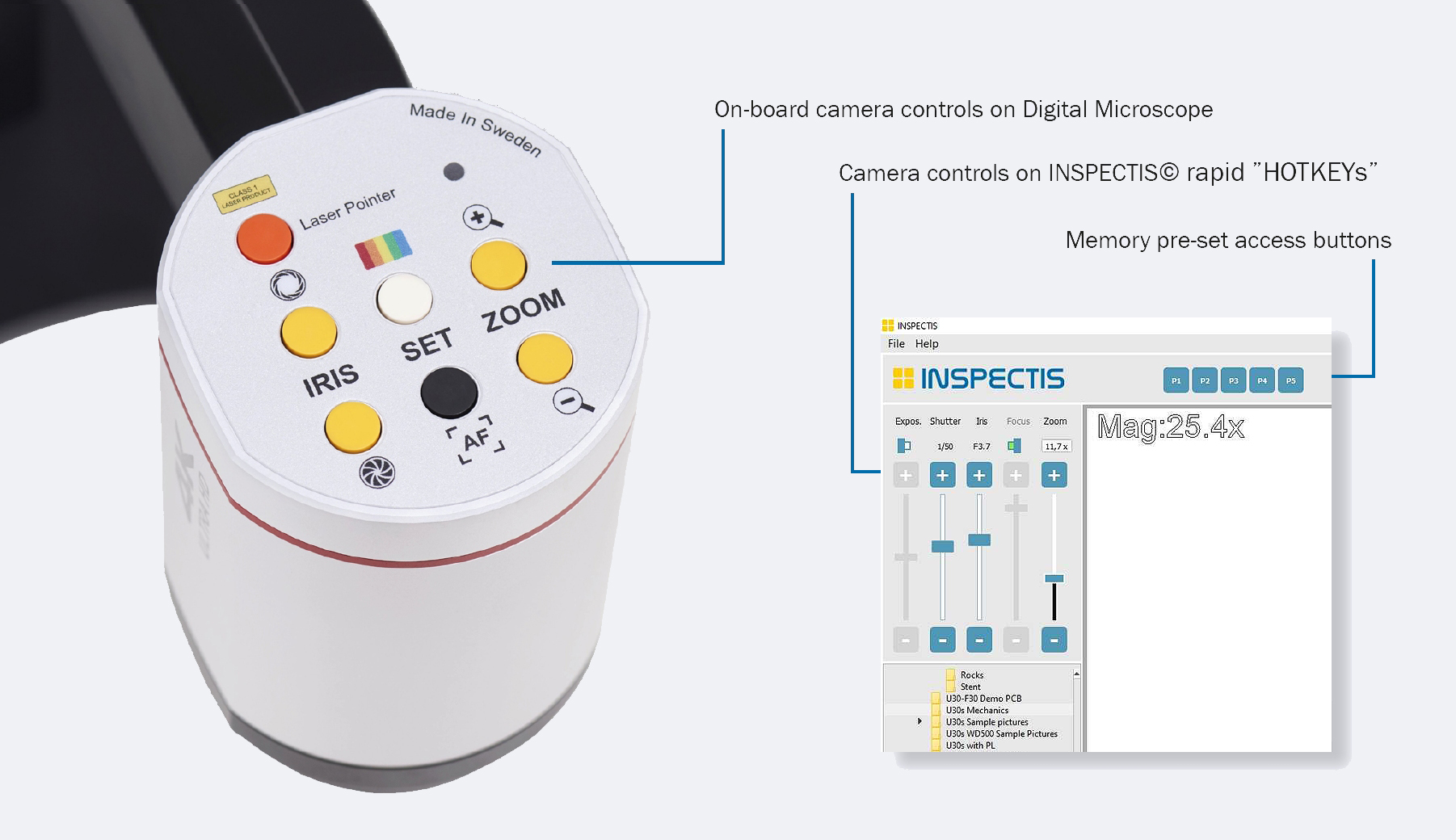

Precise Camera and Lens Control

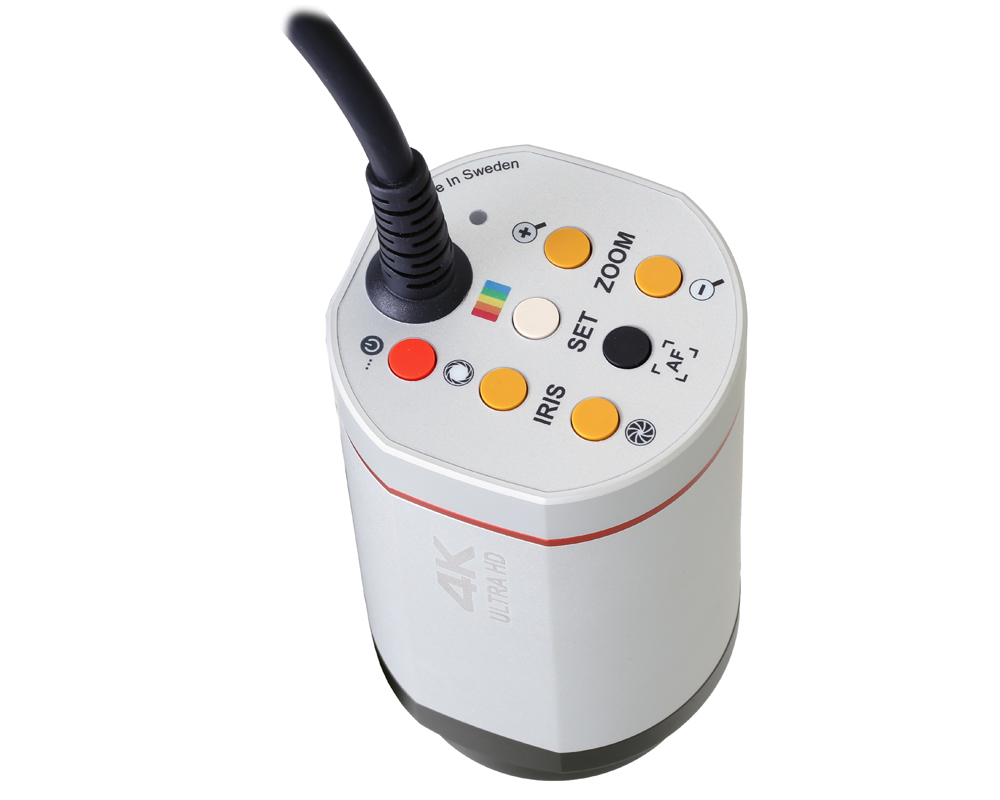

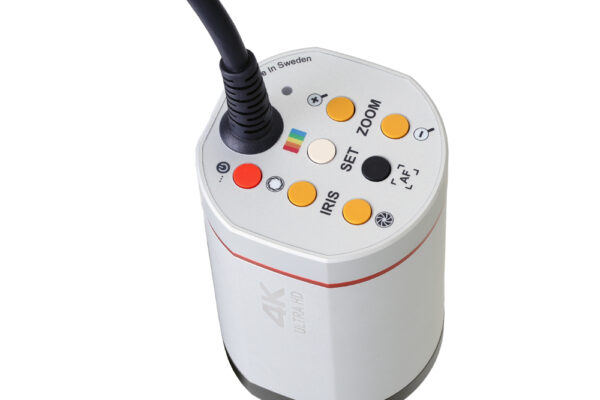

On-board controls of U50s provides direct access to camera and lens attributes like optical zoom, aperture size, focus and colour balance.

SDK is supplied for integration and control of the the digitial microscopes in 3:th party systems.

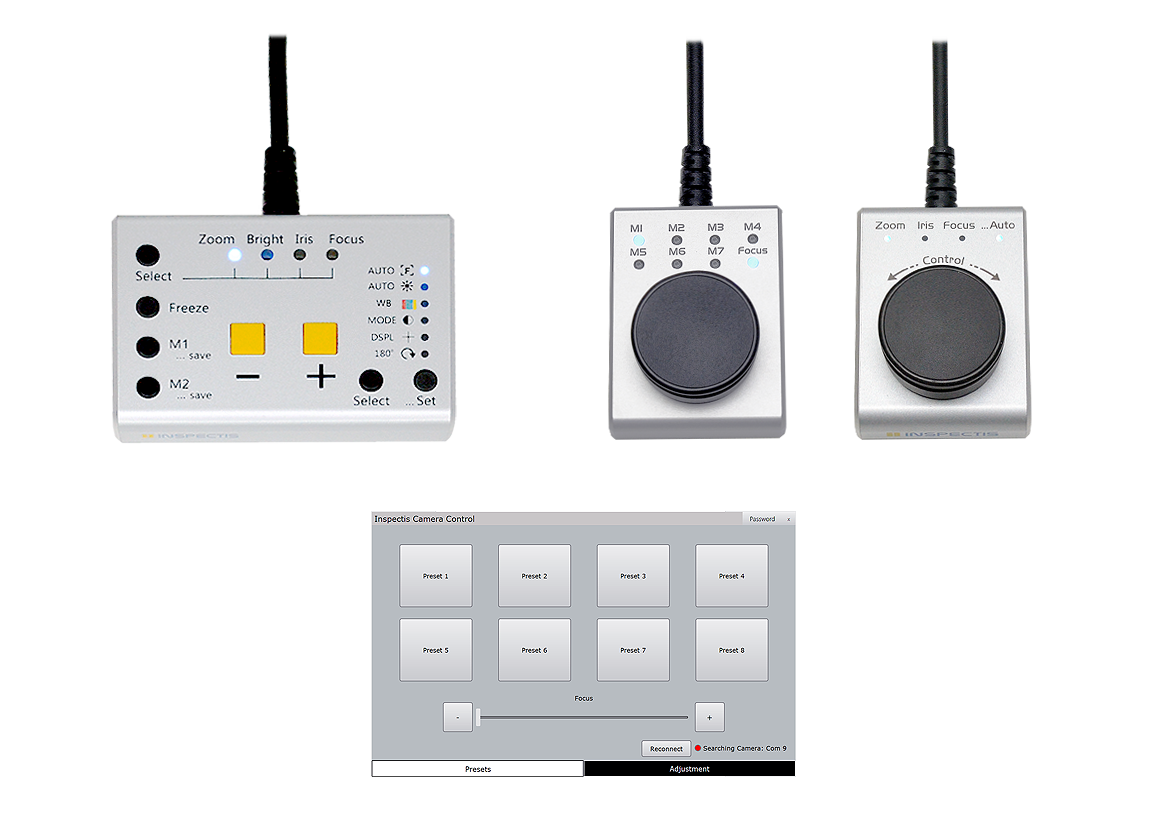

Remote Control Consoles

A wide range of remote controls are available for further adjustments of camera and lens attributes, including zoom, brightness, sharpness lens aperture size (iris), manual focus, white balance and various filters. Features such as the zoom factor display, cross-hair overlay on live image, can be turned on. In addition 2 – 7 memory settings and quick recalls is provided with advance remote controls.

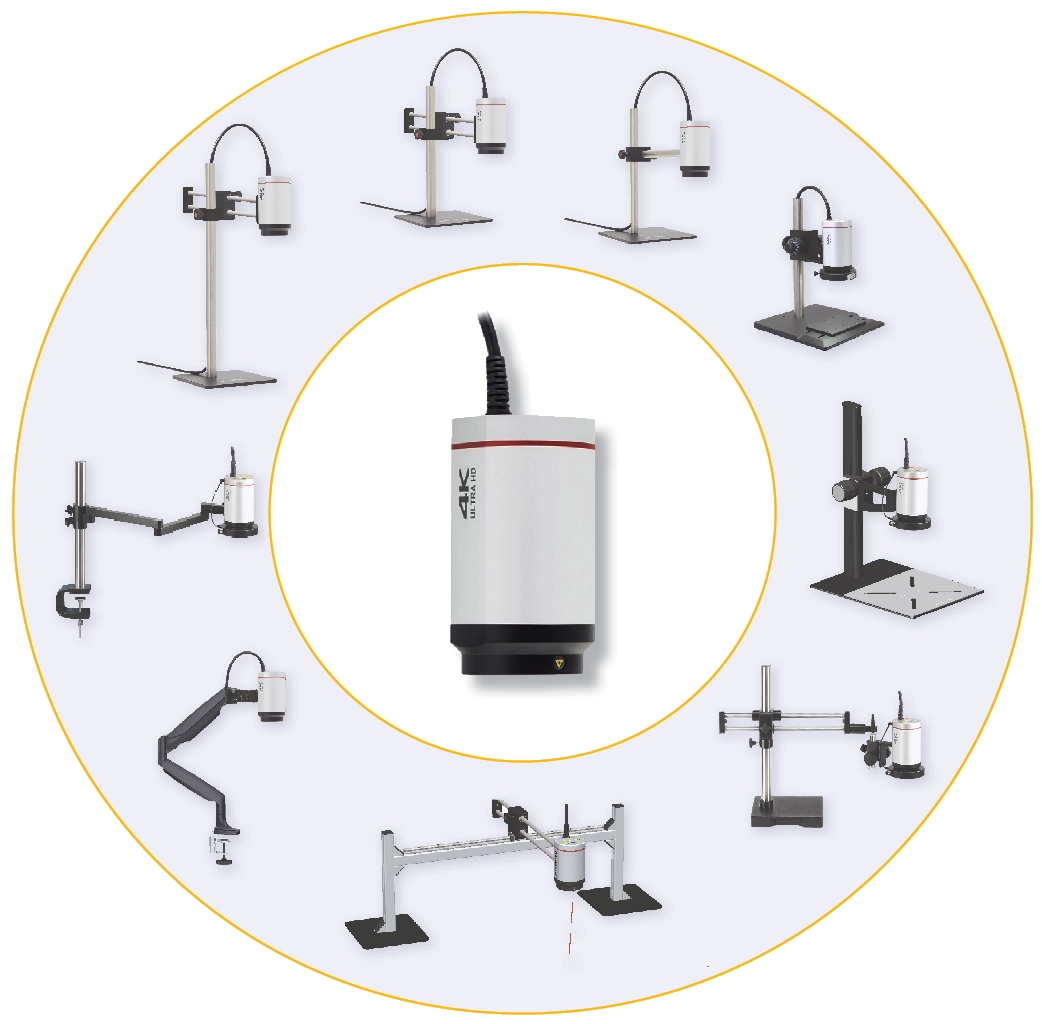

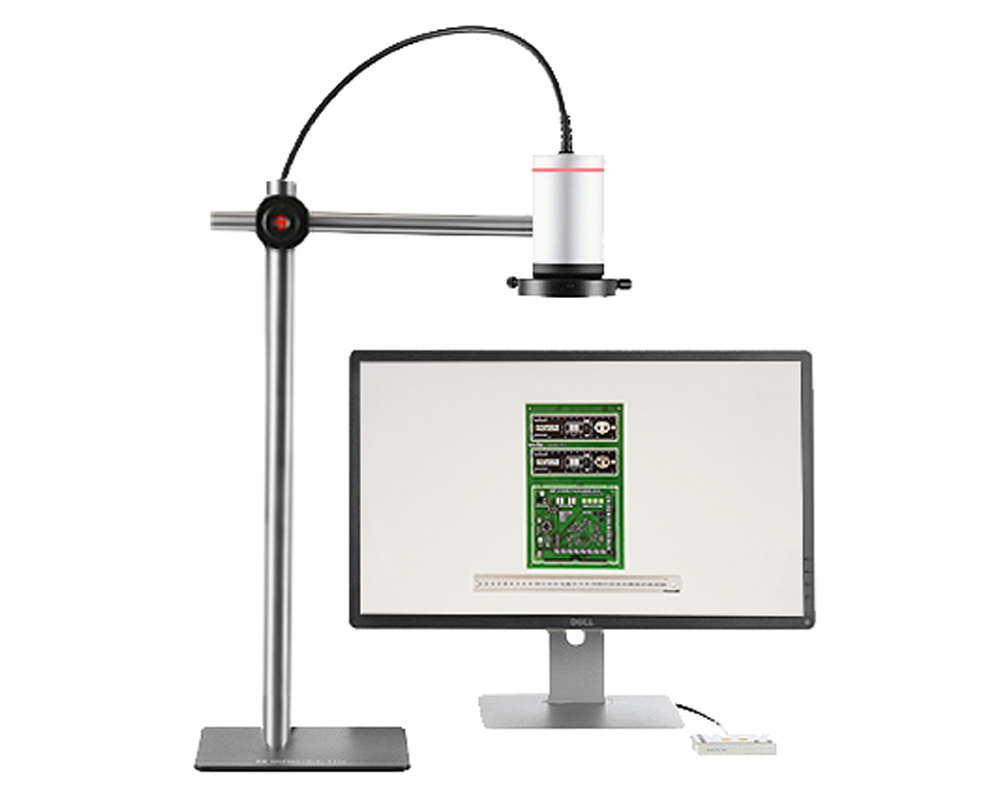

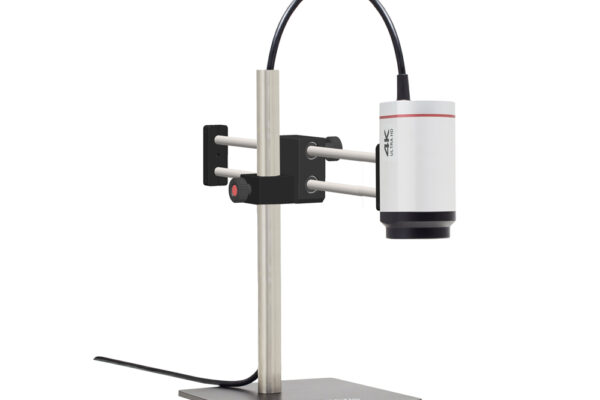

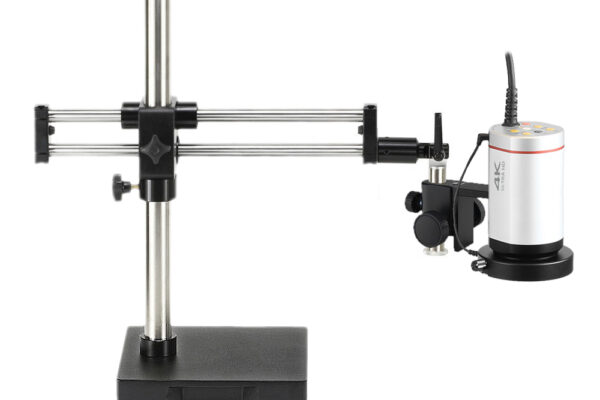

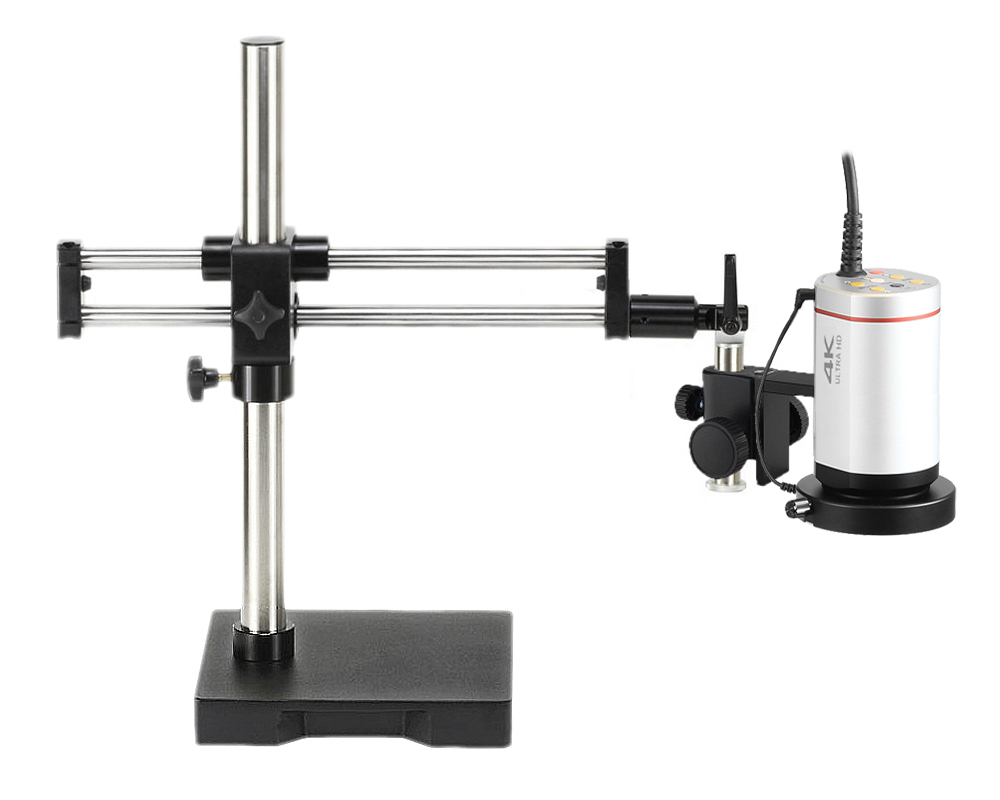

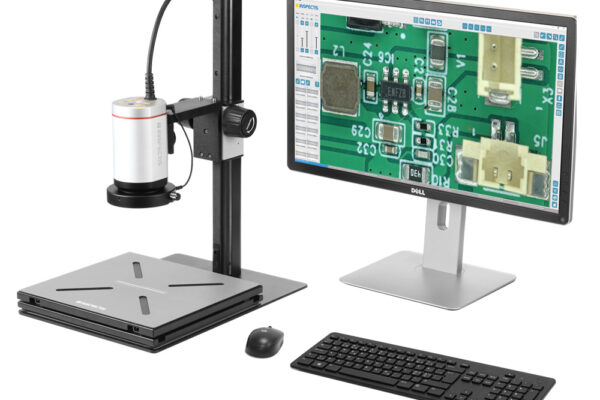

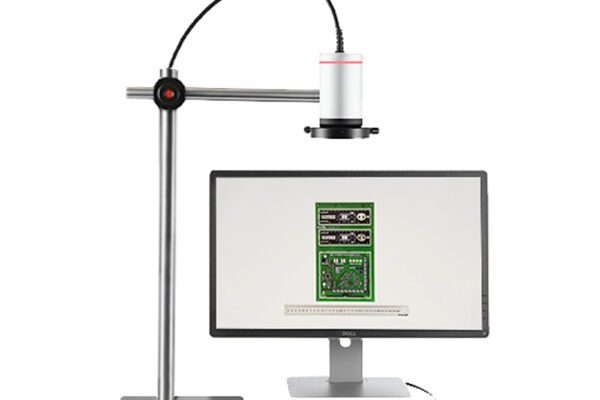

Configurable with a Wide Range of Stands

Modular design of U50s allows setting upp the inspection system with any of the Inspectis’ industrial grade stands, mounts, lenses, software and illumination systems.

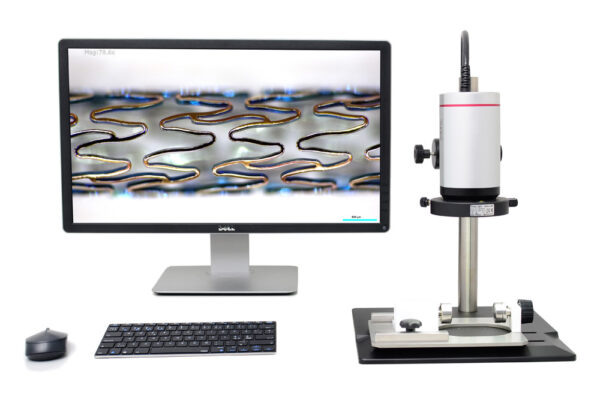

Optimized For Optical Inspection of Fast Moving Objects

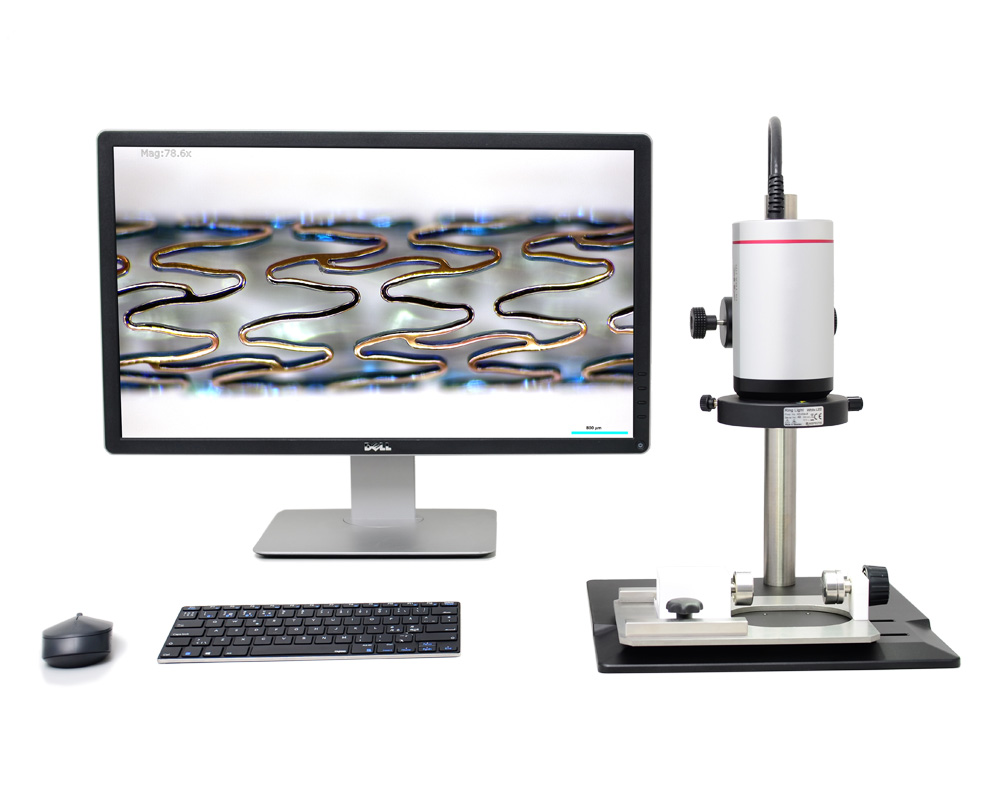

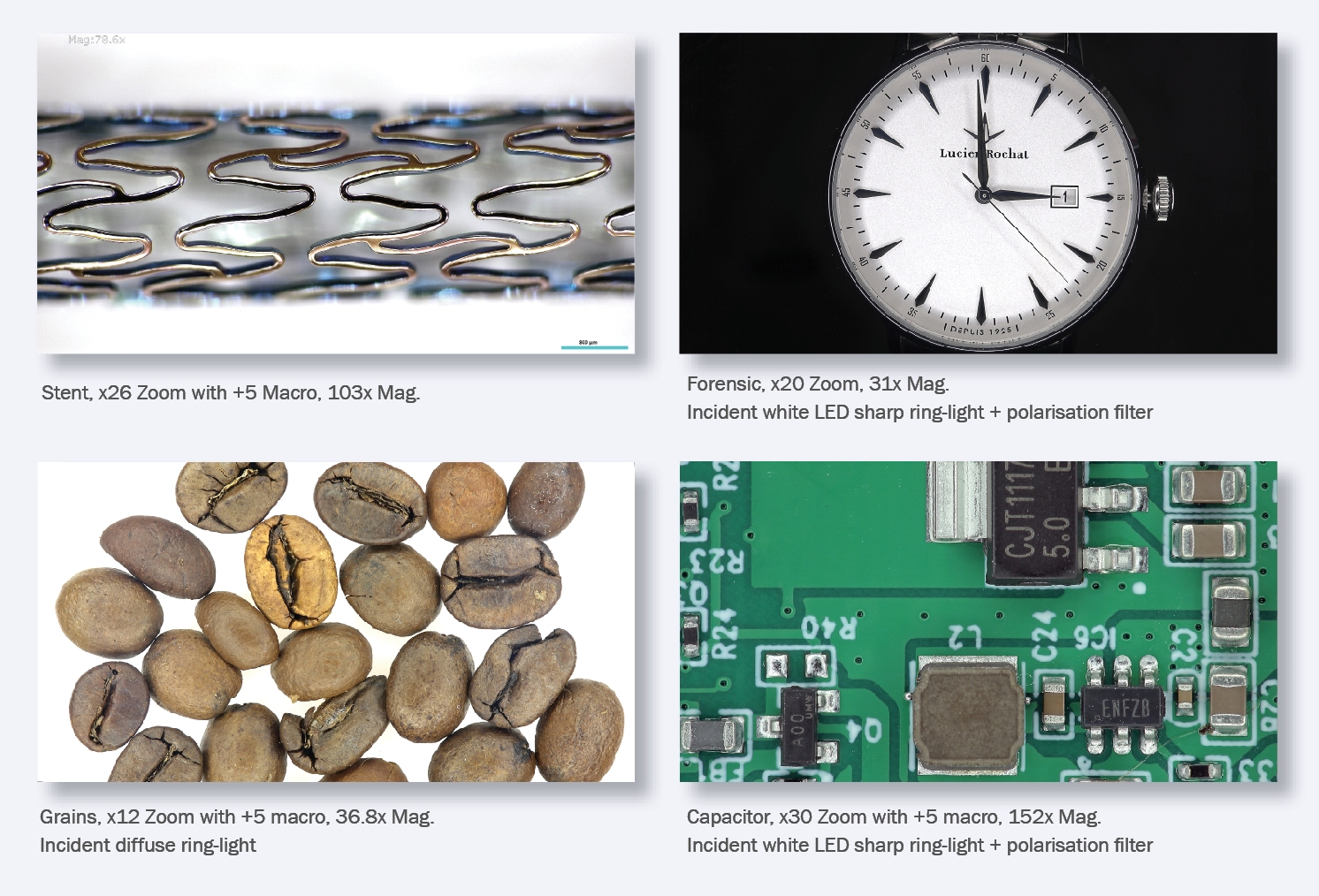

Video’s high refresh rate maintains image coherence and stability, reduces motion blur, and provides smooth and dynamic images of especially fast-moving objects such as stents, pipettes, watches, etc.

Highlights

State of the art 4K60 camera technology with 60 fps video with almost zero latency
Highly sensitive image sensor with wide dynamic range and true colour reproduction
Superior lens design with motorised zoom and fast centre-spot auto focus
2x digital zoom processed with 3D noise reduction on top of the 25x optical zoom
Modular system fully adaptable to different applications and SDK for system integration
Robust single cable design for clean and stable installation
Robust, long-lasting aluminum housing that meets industrial standards
Small form factor for not obscuring the operator view or occupy the work table

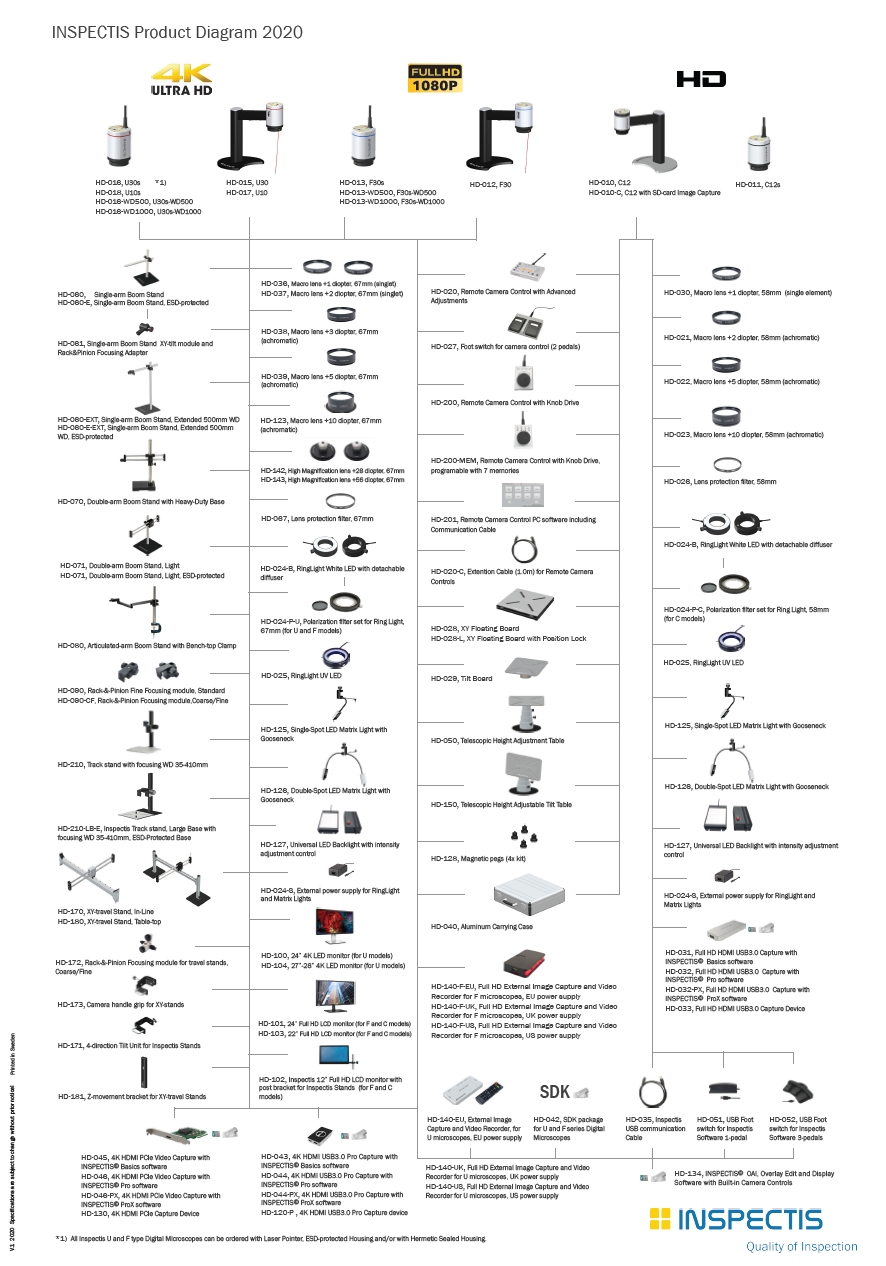

Fully compatible with full range of Inspectis accessories
Powered by INSPECTIS© software in 4 functionlity and price levels

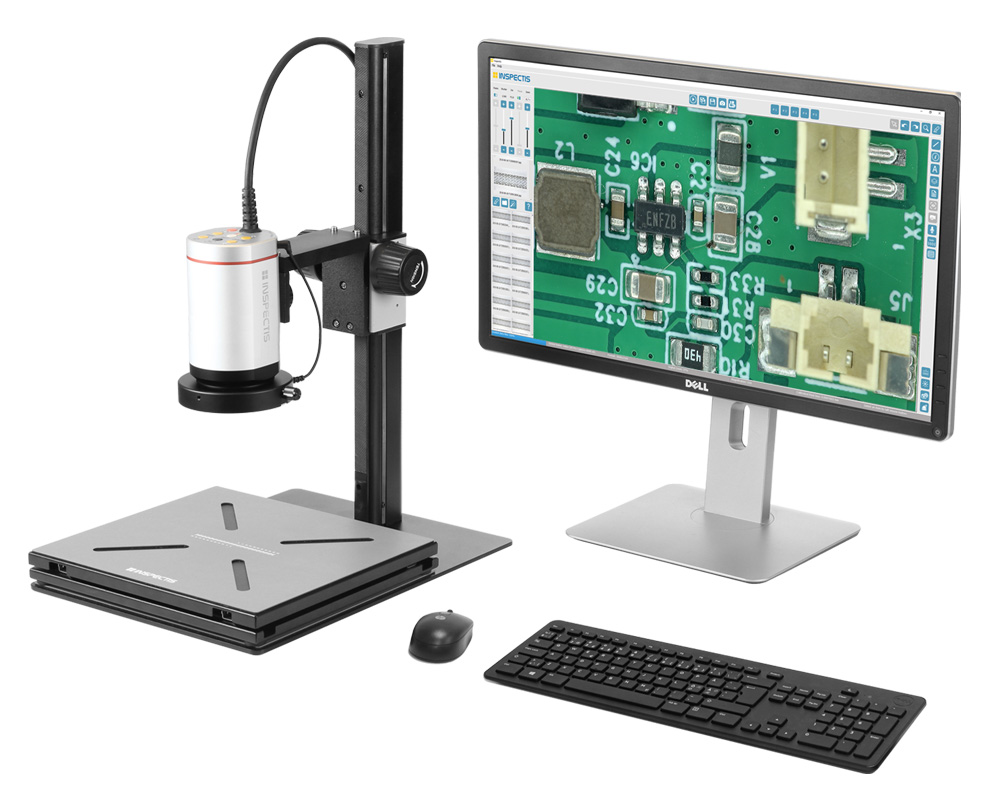

Power U50s by INSPECTIS© Software

In addition to direct view of the live image on a 4K monitor via HDMI2.0 a variaty of software options with different functionality levels are available for U50s.

INSPECTIS© Basics
INSPECTIS© Pro
INSPECTIS© ProX
INSPECTIS© OAI

Go to INSPECTIS© product page

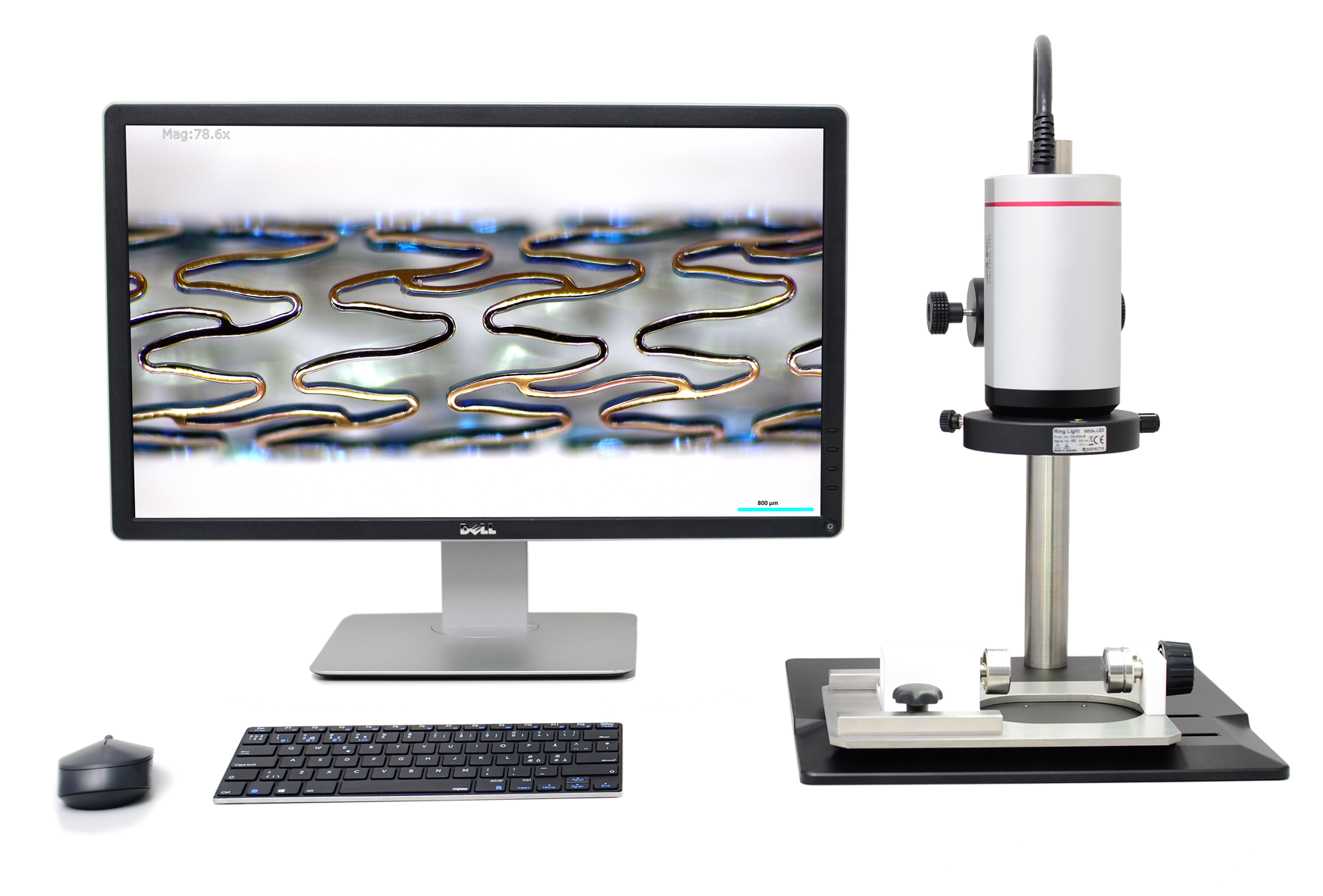

Included items when you order HD-116

Inspectis U50s, Ultra HD 2160p 60fps Modular Digital Inspection Macroscope, x50 Zoom.
Power supply.
Instructions manual and other document.
Two years new product warrany.

Downloads

Download Flyer

Product video

Specifications

Optional accessories

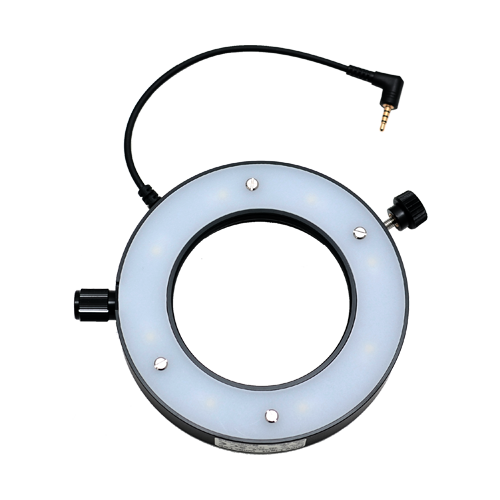

Ring Light White LED with detachable diffuser

Item no. HD-024-B

LED illuminator containing high power white LED lamps for a various incident light applications. Detachable diffuser filter and integrated brightness control for smooth and soft illumination included. Powered directly via AUX output of Inspectis Digital Microscopes for excellent cable management.

Explore Illuminations

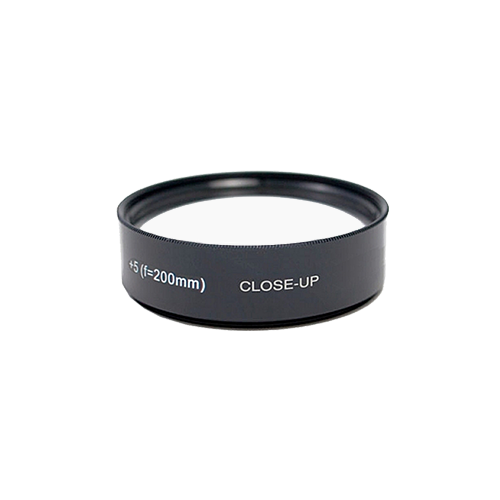

Macro Lens +5 Diopter, 67mm

Item no. HD-039

+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

Explore other Lenses

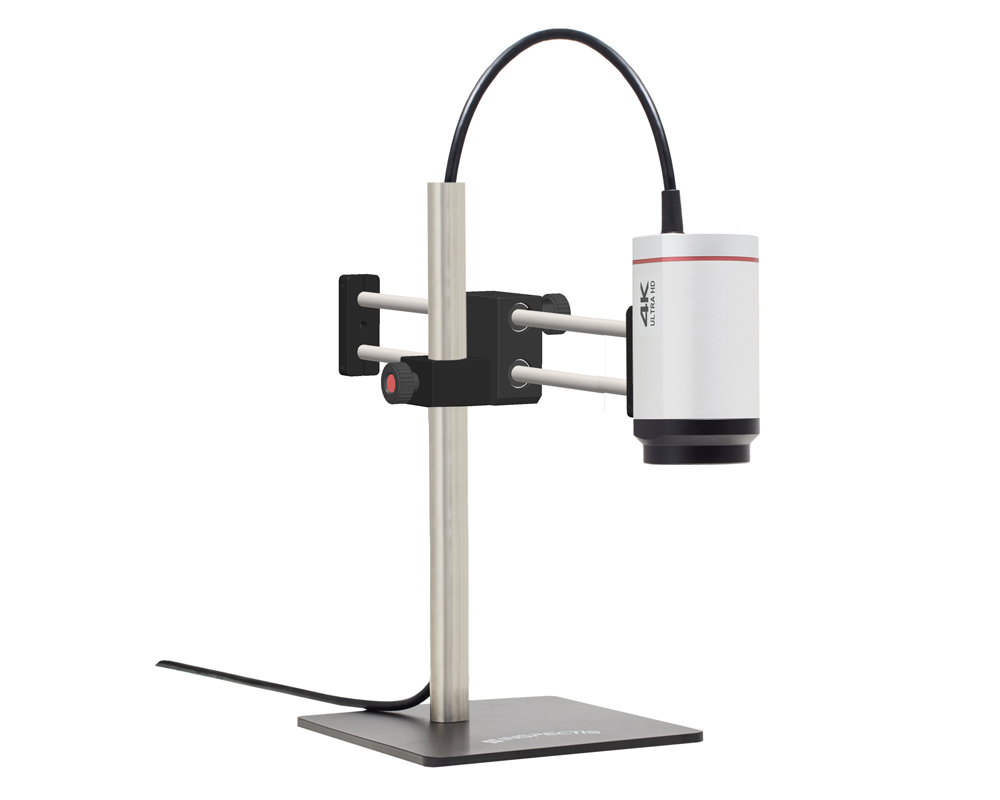

Antistatic boom stand for digital microscope

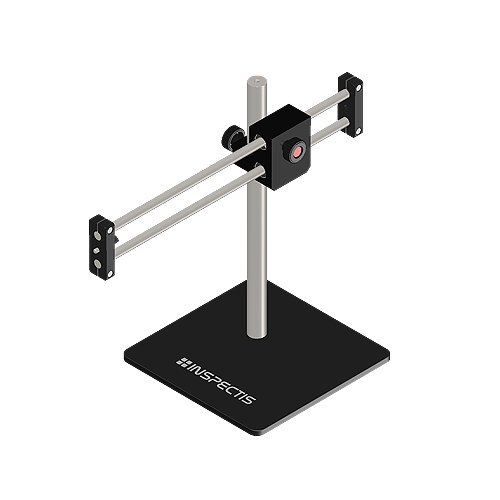

Inspectis Double-arm Boom Stand, Light, ESD-protected

Item no. HD-071-E

Industrial-type light double-arm boom stand with UNC ¼”-20 mounting screw for Inspectis Digital Microscopes. Solid metal 240mm x 240mm x 8mm base for stability and double-rod boom with ball bearing for smooth rigid horisontal movement of the Digital Microscope.

ESD-protected for use in EPA environments.

Provides stability and flexibility for horizontal and vertical adjustment of the Digital Microscope across object filed.

Explore Stands & Stages

Item no. -PX

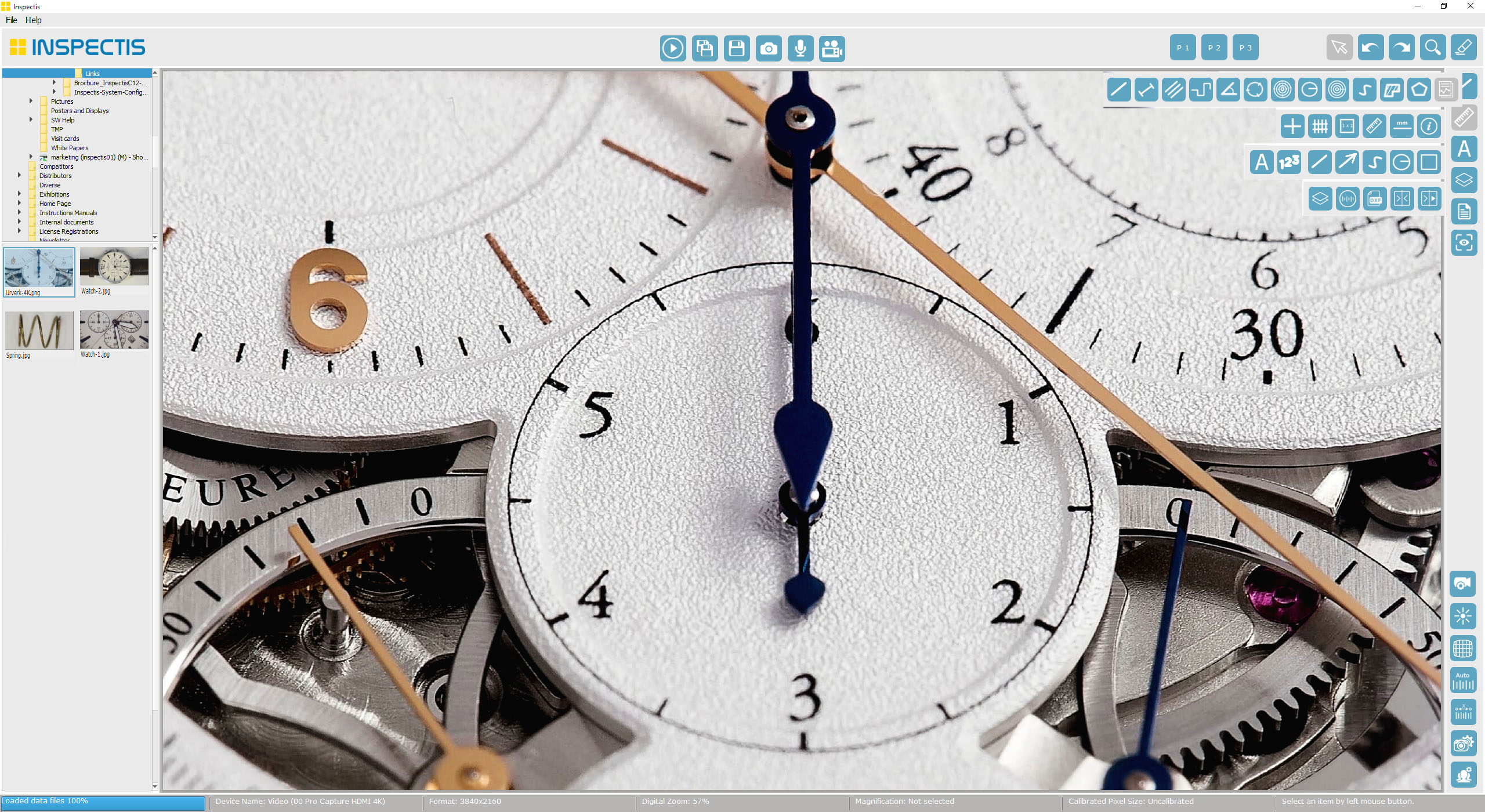

Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides following extra tools:

• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom

Inspectis 4K External HDMI Image Capture and Video Recorder for U-microscopes

Item no. HD-140-U

High-quality, plug-&-play 4K HDMI Capture and Video Recorder device with 4K video loop-through. Compatible with 2160p output signal of Inspectis U30, U30s, U10 and U10s Digital Microscopes. Captures still pictures at UHD resolution and digital video at FHD format on a Micro SD-card without need of a host computer.

Live loop through video output at 4K, 2160p format. Supplies date and time stamp on still picture and recorded video. Delivers with power supply, HDMI A-type male cable and Micro SDHC-card.

Assembled in industrial grade aluminium housing with stainless-steel bottom plate.

Explore Image Capture Devices
